Finding a machining partner can be a major headache.

You have a limited budget and your components need to be defect-free. You don’t have the time and resources to deal with the hassle of searching and sourcing. On top of all that, many machine shops have limited capability and capacity.

Miller Diversified Machining (MDM) can provide you excellent value and convenience. We’ll machine your components with cutting-edge equipment, spacious facilities, and trained technical staff. We guarantee you’ll receive the highest quality parts at a competitive price with fast delivery.


MDM is ISO 9001:2015 certified, ITAR registered, and woman-owned. Your parts will be machined with precision and the final product will meet your expectations.



Products we manufacture

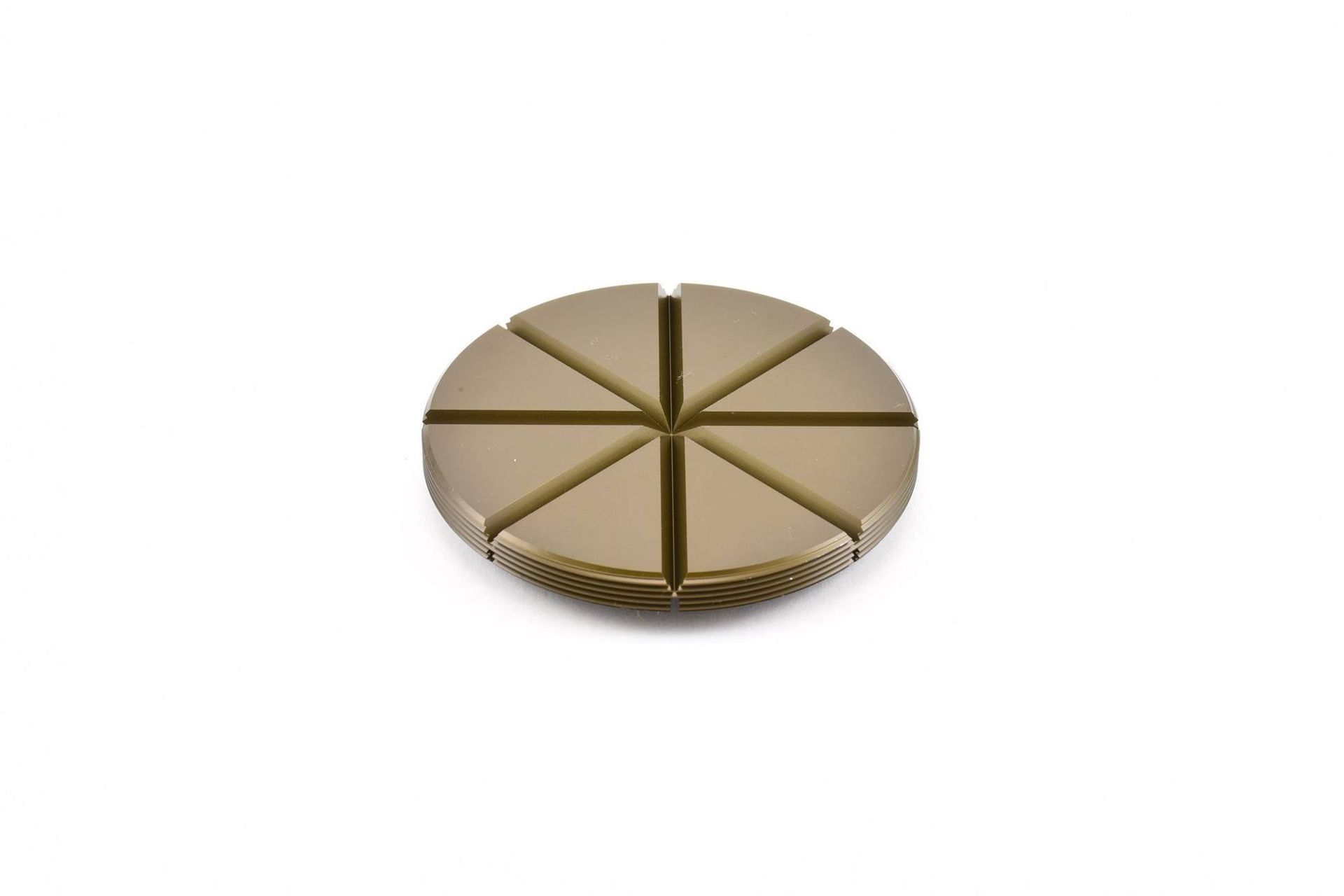

Gold-colored circular object divided into eight triangular segments by grooves.

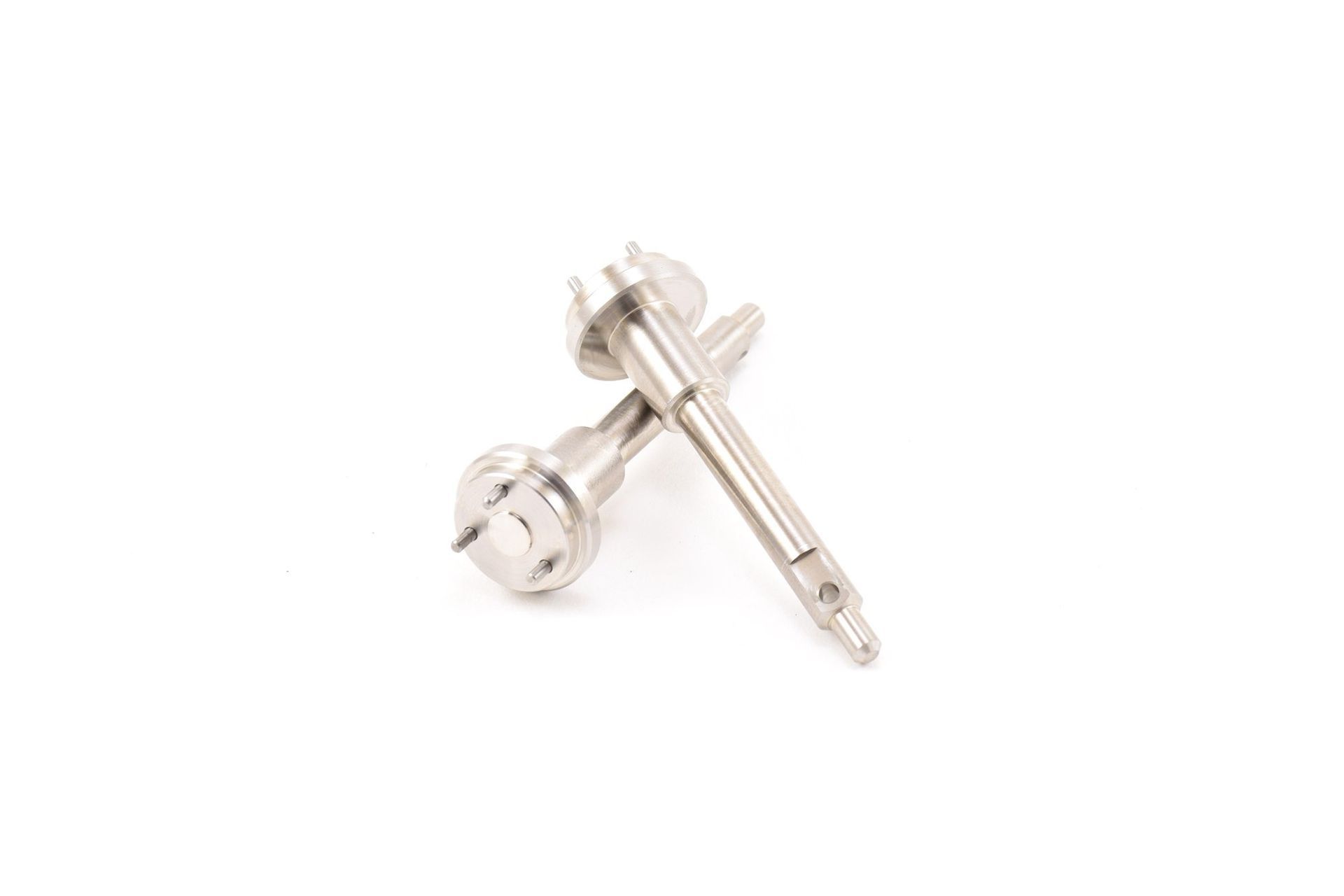

Two metallic, cylindrical machine components on a white background. One is lying across the other.

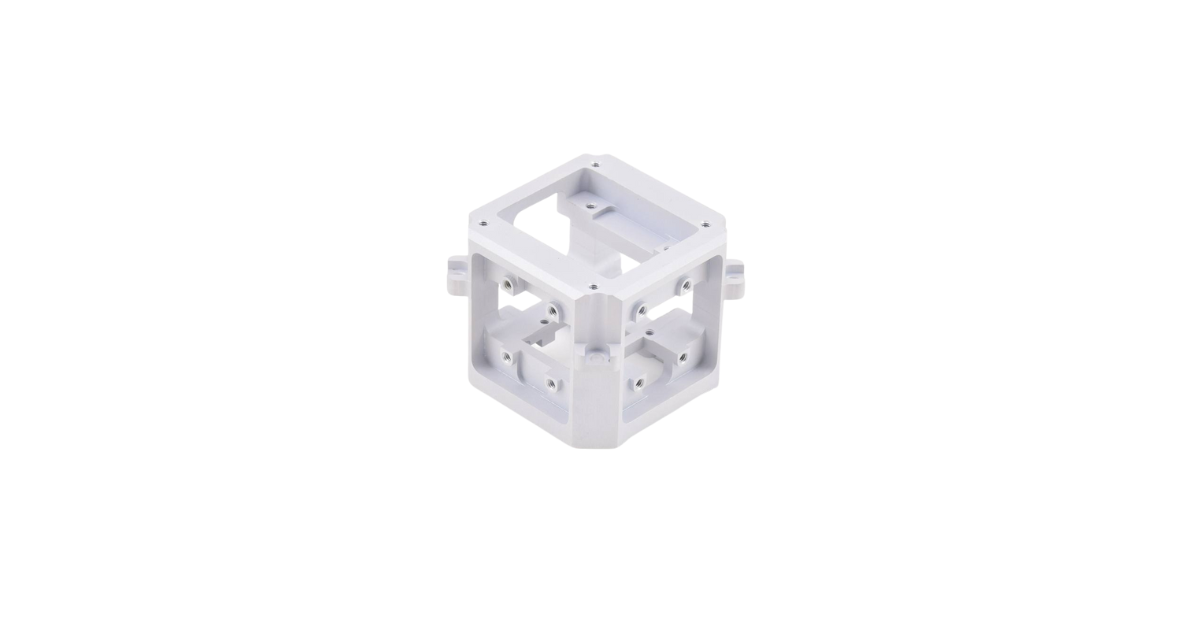

White, cube-shaped robotic frame with open sides and multiple mounting holes.

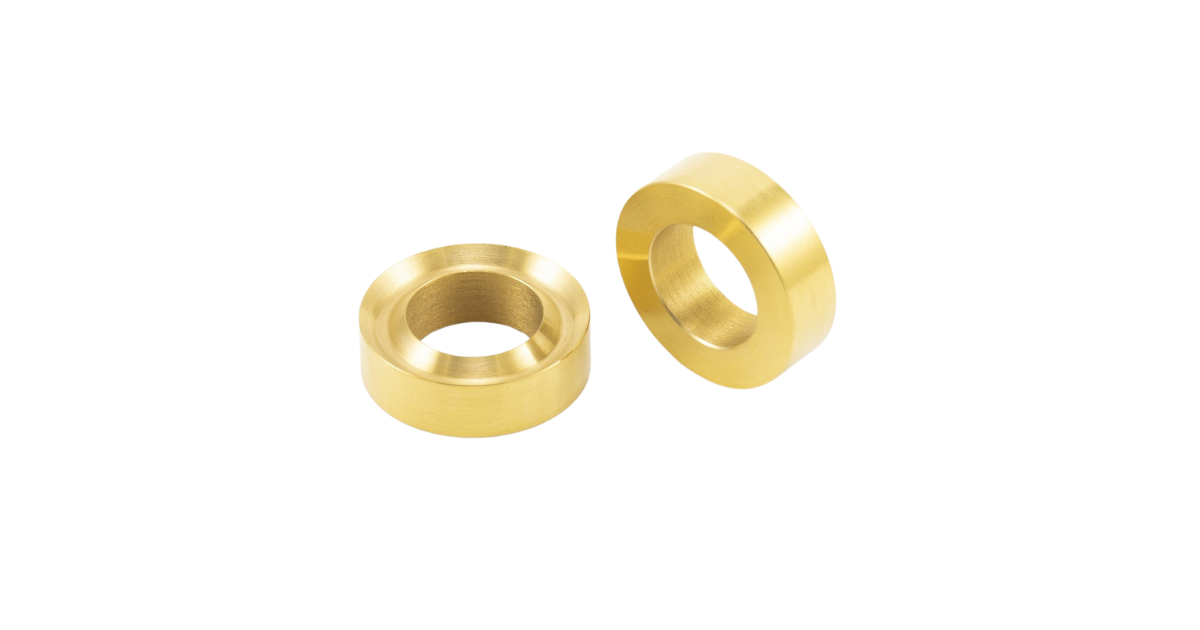

Two gold-colored brass bushings with a centered hole, lying on a white background.

MACHINING MATERIALS

MDM works with a wide range of materials on a regular basis.
These materials include:

  • Stainless Steel

    • 303, 304, 316, and heat treatable 400 grades
    • 17-4ph from annealed to H900 precipitation hardened grades

  • Steel

    • 1018
    • 11L17
    • 12L14
    • 1215
    • A2 Tool Steel
    • 4130
    • 4140

  • BRASS & COPPER

    • 360 and Beryllium

  • ALUMINUM GRADES

    • 1100
    • 2024
    • 6061
    • 7075
    • MIC-6 plate

  • PLASTICS

    • Acrylic
    • Delrin
    • Glass-Filled PEEK & PPS
    • HDPE
    • KEL-F
    • Noryl
    • Nylon
    • PEEK
    • Polypropylene
    • Poly Styrene
    • PPS
    • Teflon
    • TEF-ZEL
    • Ultem

Facilities & Machining Equipment

Our large facility provides the space we need to store materials and
in-process components to ensure product protection and organization as needed.
We can perform a versatile range of machining with our wide variety of equipment, which includes:

  • SWISS TURNING CENTERS

    • NEXTURN SA20B Swiss style with 6 bar feeder. 7 axis with simultaneous sub-spindle,.75″ dia capacity. (2010)
    • 2-Hanwah XD20H Swiss style with 12 bar feeder. 7 axis with simultaneous sub-spindle,.75″ dia capacity. (2006,2008)
    • Hanwah ML20H Swiss style with 12 bar feeder. 6 axis with simultaneous sub-spindle,.75″ dia capacity. (2001)

  • CNC TURNING CENTERS

    • 2-Hwacheon Cutex-160, 5C & 3J collet system and 6 Chuck, 1-capacity (2012, 2013)
    • Prodigy GT27, gang tooled, 5C collet System with 1″ dia. capacity (2008)
    • Amera-Seike T308, 20 HP with 2″ thru spindle, VDI turret with live tooling (2006)
    • Amera-Seike T312, 30 HP with 3.5″ dia. thru spindle capacity (2005)
    • Hitachi Seike TS15 with 1.75″ dia. thru spindle capacity (1997)
    • Kia Kit30B, 10 HP with 6″ chuck and 5C collet system, gang tooled (1994)
    • Nakamura Slant Sr., 20 HP with 2.625″ dia. thru spindle capacity (1993)

  • CNC VERTICAL MACHINING CENTERS

    • 2-Hyundai KF5600, 30 HP, 40 Tapper, with 12,000 RPM Spindle, 43″ x 22″ Work area, with Tsudakoma 4th & 5th Axis Rotary Table (2016) (2017)
    • YCM Fv50T, 30 Taper, 20,000 RPM Spindle (2015)
    • YCM NSV102A, 30 HP with 12,000 RPM Spindle, 44″ x 25.5″ work area (2008)
    • 2-Ares Seiki R560 30 tapper drill and tap machines, 12,000 RPM Spindle, one with 4th axis rotary indexer (2006, 2007)
    • Supermax XV1020, 20HP with 10,000 RPM spindle, 20″ x 40″ working area (2006)
    • Kiwa V21R, 15HP with 12,000 RPM thru coolant spindle, rotary pallet changer (2004)
    • 2 Daewoo DMV-400, 15HP with 10,000 RPM thru coolant spindles, rotary pallet changer (2000, 2001)
    • Excel 5T18, 10HP with 16″ x 22″ working area (1997)

  • SCREW MACHINES

    • 11-Brown & Sharpe single spindle automatics (1952  1972)
    • 2 no. 2G with 1.5″ dia. capacity
    • 2 no. OG with .75″ dia. capacity
    • 7 no. OO with .5″ dia. capacity
    • 3 Hardinge DV-59 second operation hand-screw manual lathes

engineering Support

At Miller Diversified Machining, we have an on-site mechanical engineer that can assist customers during the development phase of a project. Our engineer works with the customers to improve quality and producibility and often makes suggestions to reduce manufacturing costs that are passed on to our customers.


Our machining staff utilizes Mastercam extensively as a programming and modeling tool to ensure complex devices are machined properly. Mastercam is capable of using AutoCAD and Pro-E files created by our customers. This reduces programming time and eliminates mistakes.


file formats

  • AutoCAD (DWG, DWZ)
  • BMP—Bit Mapped Graphics
  • DXF—Drawing Interchange Format or Drawing Exchange Format
  • GIF- Graphics Interchange Format
  • IGES—Initial Graphics Exchange Specification, ANSI file format
  • JPG or JPEG—Joint Photographic Experts Group
  • MasterCam (MDX, MC8, MC9, SET)
  • PDES—Product Data Exchange using STEP, Standard for the Exchange of Product Model Data. A standard format for exchanging data between advanced CAD and CAM programs
  • PDF- Portable Document Format
  • Pro-E or Pro/Engineer (DRW, PRT, XPR)
  • Solidworks (SLDPRT, SLDDRW, SLDDRT)
  • STEP- Standard for the Exchange of Product Model Data
  • TIFF-Tagged Image File Format
  • TurboCAD (TCW, TCX)
  • Unigraphics (PRT)

PROJECT PLANNING & INVENTORY MANAGEMENT

Quality machining is our foundation, but we offer additional services to make your life easier. Need to reduce your inventory and budget? We have implemented a Kanban system with many customers and can assist you in reducing your inventory costs. We’ll manage your inventory, then deliver and invoice your products on a just-in-time basis.


Our planning staff manages all of your products in our database and maintains a detailed history of your products. If you ever have questions about piece part count discrepancies, revision levels, or delivery dates, give us a call and we can give you that information immediately.


You can rest assured that there will be complete traceability of your product from start to finish. If requested, we will provide Certificates of Conformance for all deliveries and detailed inspection plans in compliance with your requirements.


INSPECTION SERVICES

We have on-site inspection equipment that allows us to continuously inspect our products to ensure compliance with your quality requirements. We have a wide range of micrometers, calipers, indicators, height stands, etc. to measure your parts. If complex parts require inspection, we also have a Micro-Vu Optical CMM with touch probes. We’ve also invested in a Keyence instant measuring system that is used extensively on the shop floor to monitor production on a continuous basis.


All of our equipment is calibrated and certified per national standards by a qualified outside service.


ON-SITE CMM INSPECTION CAPABILITY

If other CMM needs are required, we also have an on-site CMM subcontractor located in our building. Mic-Right Inspection Services, owned and operated by Dean Carlson, has a number of different Zeiss and Micro-Vu machines capable of inspecting complex parts. Dean has over 30 years of CMM programming and inspection experience and is also an expert on geometric dimensioning and tolerancing. This on-site capability has been instrumental in our development of new complex components.

OUTSIDE SUBCONTRACTOR SERVICES

There are certain processes we don’t do in-house. We have developed an outstanding network of subcontractors to perform the following:

  • Plating
  • Zinc
  • Anodizing
  • Passivation
  • Chrome
  • Cadmium
  • Laser Engraving
  • Heat treatment of steels and stainless steels
  • Grinding
  • Deburring and surface treatments
  • Cryogenic deburring
  • Tumble polishing
  • Electro-polishing
  • Glass bead and sandblasting
  • Vapor polishing
  • Ultrasonic cleaning
  • Non-destructive testing
  • Magnetic Particle
  • CMM
  • Calibration of measuring instruments
